Osttiroler commercial combi mill: A 700 MSM

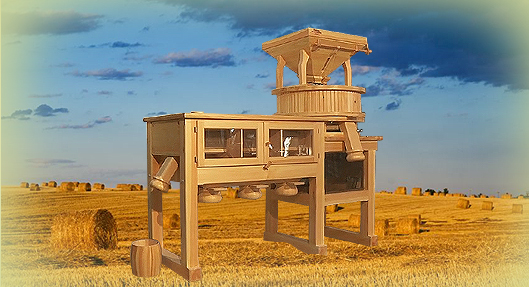

Stone mills combi - Osttiroler commercial stone mills

Mr. Green developed "Stone mills - Combi" about 40 years ago!                           East Tyrolean Grain Mills  | Osttiroler Getreidemühlen | Heidi Green, household mills, combi mills, wholemeal mills, trade mills, industrial mills, commercial mills, commercial mills plant, stone mills, cereal mills,

Osttiroler Getreidemühlen (East Tyrol grain mills, stone mills) with an integrated flour sieve machine, called Stone Mills - Combi. Due to this combination it is possible with just one device to produce not only whole-meal, but also white flour and semolina. The grain is ground between the stones and sifted in the built-in sieve. In this way you can obtain fine flour, fine semolina, coarse semolina and bran in just one operation. By changing the sieves in the built-in sieve you can vary the fineness of any flour or semolina.

The simple construction enables the sieves to be changed easily and also allows for easy cleaning of the stone mill. They are also suitable for continuous operation.



Mr. Green, the founder of the "Osttiroler Getreidemühlen", has been the only producer of grain mills to be awarded by the State Award for quality from the Bavarian State Government in 1978.

The Original Osttiroler Getreidemühlen featuring numerous quality awards can solely be obtained from the Manufacturer, the Family 'Green', under the following address:


Osttiroler Getreidemuehlen, Heidemarie Green, A-9991 Doelsach, Stribach 55

Tel: +43 4852 61061, Fax: +43 4852 61063
Mail: og@getreidemuehlen.com Web: www.getreidemuehlen.com

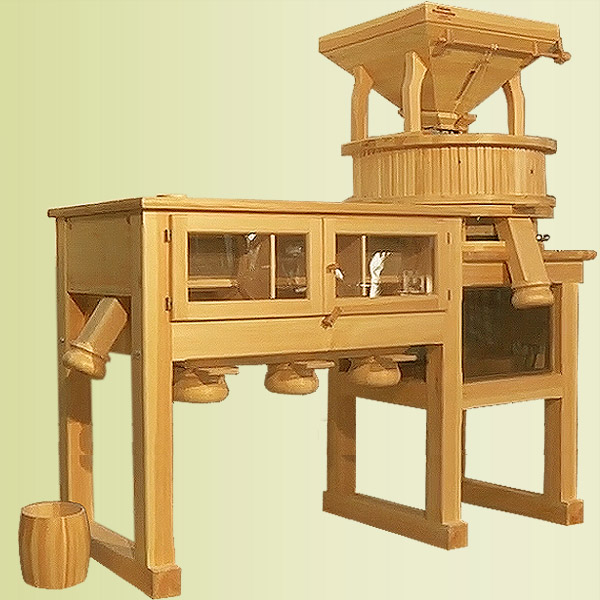

A 700 MSM - stone mill - combi mill

A 700 MSM - stone mill - combi mill
Bayrischer Staatspreis für hervorragende Qualität
Official Award for quality
from the state government
germany
Specifiations
Dimensions in cm L/W/H: 250 / 120 / 220
Weight: 780 kg
Hopper volume: 80 kg
Capacity of the mill /h: ca. 70–125 kg
Millstones: certified millstones
Voltage: 230 / 400 V
Frequency: 50 Hz
Rev. per minute: 150 - 400 rpm
Overload protection for all motors.



  • Casing and built-in sieve from genuine pine wood.
  • The quantity of grain into the hopper is adjustable by the small cogwheel under the hopper. The fineness of the flour can be altered by a wheel by hand.
  • Sight glass in the hopper.
  • Magnetic trap captures the small ferrous particles.
  • 3 chambers in the sieve with 6 sets of sieves to change gives the chance to produce various type of flour in one operation.
  • Due to the low revolutions of the stones, the mill is suitable for continuous operation.
  • Specially cut stones guarantee the best quality of the flour (devel. by Green).
  • Optional equipment: the mill stops working when the hopper is empty.
  • The stone mill is ideal for grinding any type of grain, rice, corn, chestnuts, herbs, etc.
  • Easy to clean


Trophy for quality

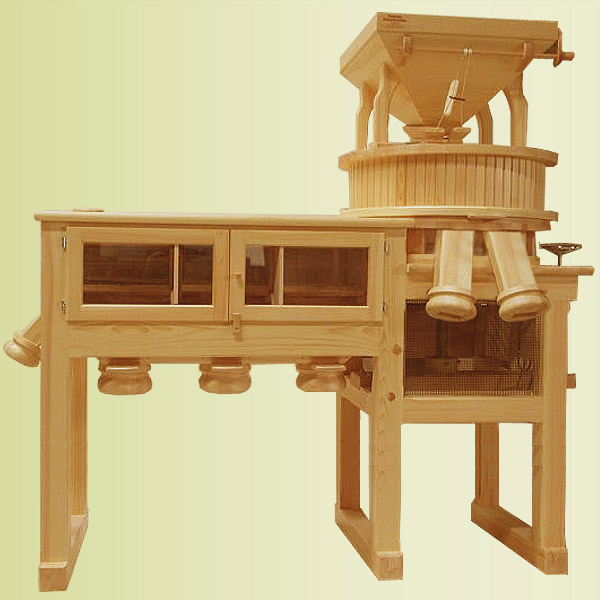

A 700 MSM S2 - stone mill - combi mill (2 outlets for flour)

A 700 MSM S2 - stone mill - combi mill (2 outlets for flour)
Specifiations
Dimensions in cm L/W/H: 250 / 120 / 220
Weight: 780 kg
Hopper volume: 80 kg
Capacity of the mill /h: ca. 70–125 kg
Millstones: certified millstones
Voltage: 230 / 400 V
Frequency: 50 Hz
Rev. per minute: 150 - 400 rpm
Overload protection for all motors.
  • Casing and built-in sieve from genuine pine wood.
  • The quantity of grain into the hopper is adjustable by the small cogwheel under the hopper. The fineness of the flour can be altered by a wheel by hand.
  • Sight glass in the hopper.
  • Magnetic trap captures the small ferrous particles.
  • 3 chambers in the sieve with 6 sets of sieves to change gives the chance to produce various type of flour in one operation.
  • Due to the low revolutions of the stones, the mill is suitable for continuous operation.
  • Specially cut stones guarantee the best quality of the flour (devel. by Green).
  • Optional equipment: the mill stops working when the hopper is empty.
  • The stone mill is ideal for grinding any type of grain, rice, corn, chestnuts, herbs, etc.
  • Easy to clean

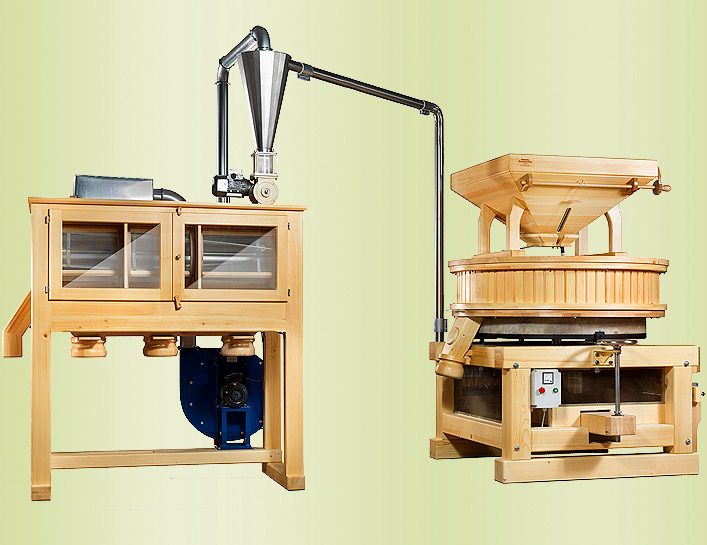

Mill plant A 700 - A 1000 - A 1200 - A 1600 with transport pneumatic

Gewerbemühlen Anlage - Osttiroler Getreidemühlen Green

Mill plant A 700 - A 1000 – A 1200 – A 1600
Plant with transport pneumatic



With the pneumatic air conveyor system the mill keeps clean and the flour keeps cold!
30% more hourly capacity



All our mills are low speed - slowly runners - this is very important for flour quality!
inside is partly in stainless steel



Important! – Windows in the sifter to check inside!
hourly capacity: ca. 170- 500 kg ca. 330 – 1100 lbs



In the past 20 years almost all of our mill-plants were delivered with the proven pneumatic air conveyor system. The air stream is cooling down the flour in the transport pipes on the one hand, and has also a positive cooling effect on the mill-stones on the other, resulting in an increase of output up to 30 %!



Furthermore, the pneumatic air conveyor system guarantees a constant flow volume of the flour from the mill into the sifting machine. and therefore starve feeding resp. over feeding of the sifter machine can be 100 per cent ruled out, but which could happen because of a varying filling level in a conveyor screw.
